HARLEY DAVIDSON PAN AMERICA 1250 ST BIKE FULL SPECIFICATION
| Category | Specification |
|---|---|
| Engine | Revolution Max 1250, 1252 cc, liquid-cooled V-Twin |
| Power | 149 hp @ 8750 rpm |
| Torque | 91 Ib-ft (124 Nm)@ 6750 rpm |
| Compression Ratio | 13.0:1 |
| Transmission | 6-speed manual with quickshifter |
| Final Drive | Chain, 19/48 ratio |
| Fuel System | Electronic Sequential Port Fuel Injection |
| Fuel Capacity | 5.6 gallons (21.2 liters) |
| Fuel Economy | 46 mpg (combined) |
| Front Suspension | 47mm inverted Showa fork, electronically adjustable preload, manual compression & rebound damping 6.7 in (170 mm) travel |
| Rear Suspension | Showa monoshock, aluminum swingram, electronically adjustable preload , manual compression & rebound damping 6.7 in (170 mm) travel |
| Front Brakes | Dual 320 mm Brembo discs 4-piston monoblock caliper |
| Rear Brake | Single 280 mm disc, single-piston caliper |
| Wheels | 17-inch cast aluminum (front & rear) |
| Tires | Michelin Scorcher Sport: 120/70 ZR17 , (front), 180/55 ZR17(rear) |
| Seat Height | 31.7 in(805 mm) unladen; Adaptive Ride Height lowers up to 1 inch when stopped |
| Ground Clearance | 6.7 in|(170mm) |
| Wheelbase | 61.8 in (1570 mm) |
| Dry Weight | 507 Ibs (230 kg) |
| Wet Weight | 542 Ibs (246 kg) |
| Rider Aids | Cornering ABS, Traction Control, Drag-Torque Slip Control, Liked Braking, Cruise Control |
| Display | 6.8 - inch color TFT touchscreen with Bluetooth , navigation and ride modes |
| Lighting | Full LED with Daymaker Adaptive Headlamp |
| Quickshifter | Standard allows clutchless up/down shifting |
| Color Options | Vivid Black, Billiard Gray, Brilliant Red |
| Price (USD) | $ 19,999 |

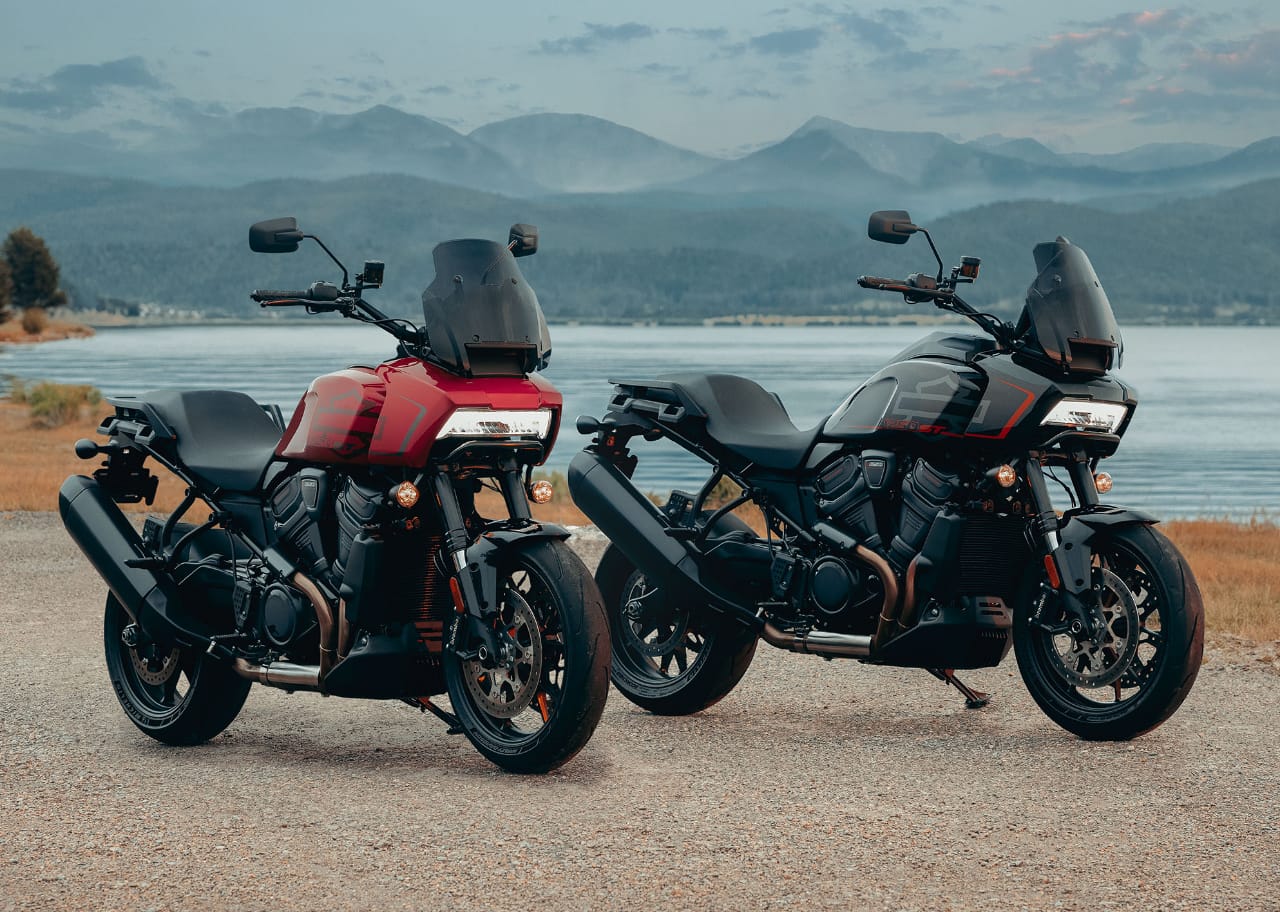

HARLEY DAVIDSON PAN AMERICA 1250 ST IMAGES
The Harley-Davidson Pan America 1250 Special is a rugged, adventure-ready motorcycle designed to conquer both paved roads and wild terrain. With Harley’s signature power blended with modern tech and off-road capability, it’s a bold leap into the ADV segment.
Key Features:
Revolution Max 1250 Engine – Liquid-cooled V-twin producing 150 hp and 127 Nm of torque for strong, linear performance
Semi-Active Suspension with Adaptive Ride Height – Automatically lowers at stops and adjusts damping in real-time
Touchscreen TFT Display – Full-color 6.8” screen with navigation, ride modes, and connectivity features
Five Pre-Set Ride Modes + Custom Options – Rain, Road, Sport, Off-Road, Off-Road Plus, plus customizable settings
Brembo Braking System – High-performance braking for confident control
Cornering Rider Safety Enhancements – Traction control, ABS, and drag-torque slip control optimized for leaning conditions
Spoked or Cast Wheels – Designed for different terrain preferences
Tubeless Tires on Optional Spoked Wheels – Adventure flexibility with practical maintenance
Aluminum Skid Plate & Brush Guards – Built tough for off-road durability
Cruise Control & Heated Grips – Added comfort for long rides
BikeLoka Ratings:
Overall Rating: 8.6/10
Engine Performance: 8.8/10
Riding Experience: 8.7/10
Value for Money: 8.7/10
